Medical Adjustable Beds

Clinical, Hospital Style Power Beds and Mattresses




Casa Med II

Casa Med II with wooden platform


The Casa Med II is a scissor mechanism bed that provides outstanding flexibility by offering an increased safe working load and tension adjustable wooden slat mattress support. End panels are natural mock beech wood, bed frame is powder coated steel.

Maximum user weight 25 stone (165 kg).





Features & Benefits:

  • 4 section profiling mattress support
  • Electrically operated from a handset controller
  • Height adjustable
  • Profiling lock out function via handset
  • Built-in height adjustable full length side rails
  • Four brake castors
  • Washable wooden slatted mattress support
  • Scissor-lift raising mechanism
  • Maximum patient weight 165kg




click on image to enlarge

Specifications:

Total weight 149 kg
Heaviest part 40 kg
Outer Dimensions W x L 101 x 206 cm
Maximum safe working load 200.kg
Mattress base height 40 to 80 cm
Total height with raising mechanism 182 cm
Mattress Support W x L 89 to 199 cm
Adjustment of back section 0 to 70°
Foot section angle adjustment 0 to 20°

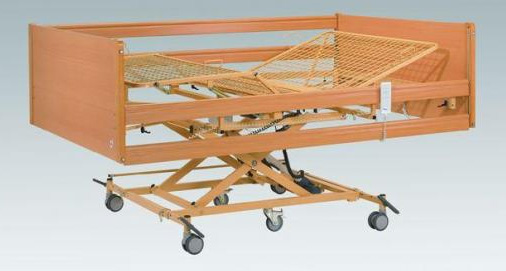

Casa Med II with wooden slat platform
Order Code: 19865
